■ Product features

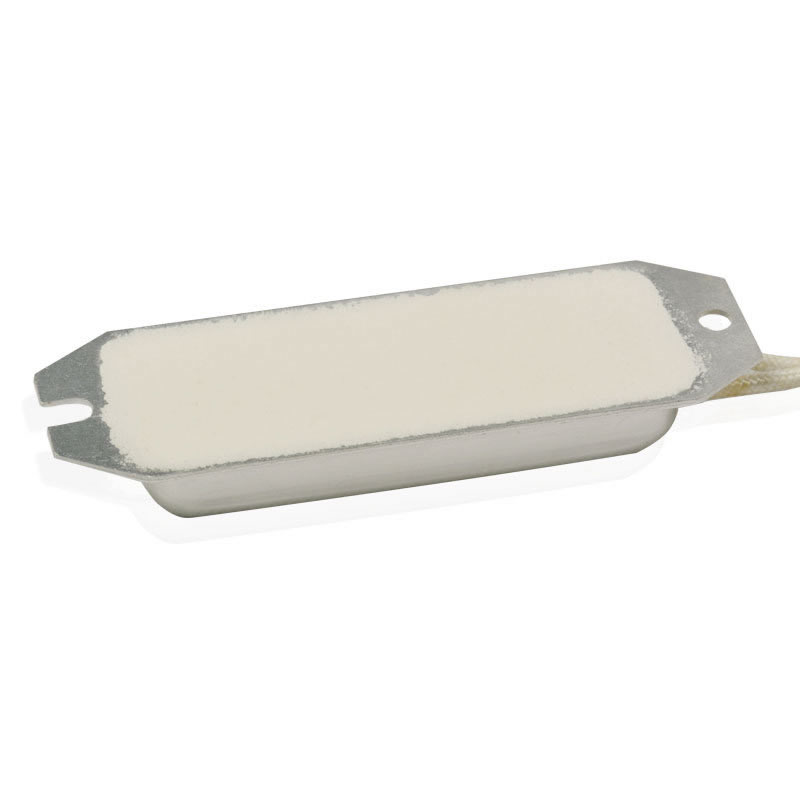

Adopting high heat dissipation aluminum shell, filled with high insulation and non combustible filling material, it is extremely easy to dissipate heat; Has vibration resistance, weather resistance, and long-term stability; High power, small size, easy installation, and beautiful appearance.

■ Specifications, dimensions, and technical specifications

◆ Specifications, dimensions, and units of measurement: mm

*Note: The dimensions are for reference only. Specific dimensions and selection need to be consulted

◆ Electrical parameters

■ Product power consumption reduction curve chart

Customer selection, for exampleRXC 60W 10 Ω± 5%, model: RXC-60-10RJ-L; Low inductance, add the letter N to the model, for example: N RXC-60-10RJ

■ Suggestions for using resistors

It is best to leave 1.5 times the power margin for resistors in circuits. For example, if the voltage in the circuit is 100V and the current is 0.01A, the calculated power is P=100 * 0.01=1W. At this time, a resistor of 1W cannot be used, and 1 * 1.5=1.5W is calculated. If there is no 1.5W resistor, a resistor of 2W is needed.

■ Precautions for use：

1. Please configure the recommended heat dissipation board in the table when using it. Otherwise, the nominal power of the resistor will be discounted. (Difficult to meet the requirements for use at nominal power.)

2. Maximum length of external lead: 1.5 meters.

3. According to user requirements, the resistance range listed in the table can be extended to both ends. Provide users with more suitable resistors.

4. Due to the presence of certain volatile substances in the packaging materials of this series of products, the resistor may experience "exhaust" and some odor during initial use, which is a normal phenomenon.
